| CO2 Manager V6.1 |
The new Ultimate CO2 Manager V6.1 offers two distinct
algorithms to control the daytime CO2 concentration with an
amazing precision. A computer program controls the on
time of your CO2 generator to attain your target without
overshooting. You can select the manual mode with
adjustable differential but we are convinced that the auto
mode will be your choice for precision.
In vented grow rooms the auto mode saves on average
about 30% in gas due to the efficiency of the algorithm.
Compare the V6.1 with the competition or even itself in
manual mode and witness the precision and economy of
gas. Absolutely nothing compares to the V6.1. Guaranteed
and that's not all.
The V6.1 is the only controller to evacuate excess nighttime
CO2. Plants exhale CO2 as a byproduct of respiration. In
small or dense grow rooms nighttime CO2 concentrations
can easily reach 1500 PPM or more. A high nighttime
concentration is toxic and will inhibit dark respiration. The
plants protect themselves by deflating the stoma guard cells
which colapse and block the stomas inhibiting dark
respiration. Need convincing? Place a branch inside a
plastic bag overnight. Leaves will be limp and droopy at
daybreak and the CO2 concentration inside the bag will be
very high. Remove the branch from the bag and soon the
leaves begin to straighten. Not a winning environment for a
champion but a limiting factor to growth. The V6.1 controls
the nighttime concentration by activating an exhaust turbine
as required. We suggest 600 PPM as a nighttime maximum
but the user may select any level. And there is more.

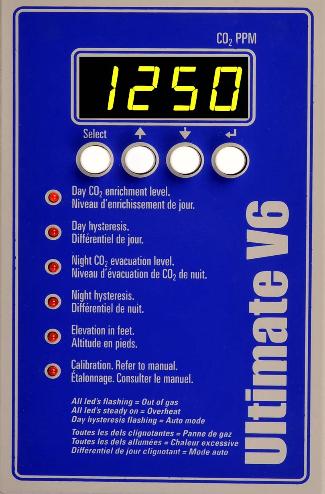

The V6.1 will interrupt CO2 enrichment should the
growroom exceed 105F/40.5C and restart whenever the
temperature drops below 95F/35C. All leds steady on
indicates an overheat situation. The V6.1 also detects gas
outages and interrupts enrichment to preserve equipment.
All leds flashing indicates you are out of gas. Replace tank
and push the enter key to resume operation.
An algorithm especially for burners using Honeywell Smart
Valves with intermittant pilot such as Ultimate, Plug n Grow,
Grozone, Blu Ox and CVR. A separate algorithm for CO2
injection and burners with piezo type ignition.
Supports a 12" nighttime extraction turbine.
Interfaces with your ventilation system, if any, to interrupt
enrichment during the day to prevent wastage.
Certified compliant to CSA/acnor, CEC and NEC for your
safety.
7/7 Customer Support
2 Year Warranty MSRP $789
